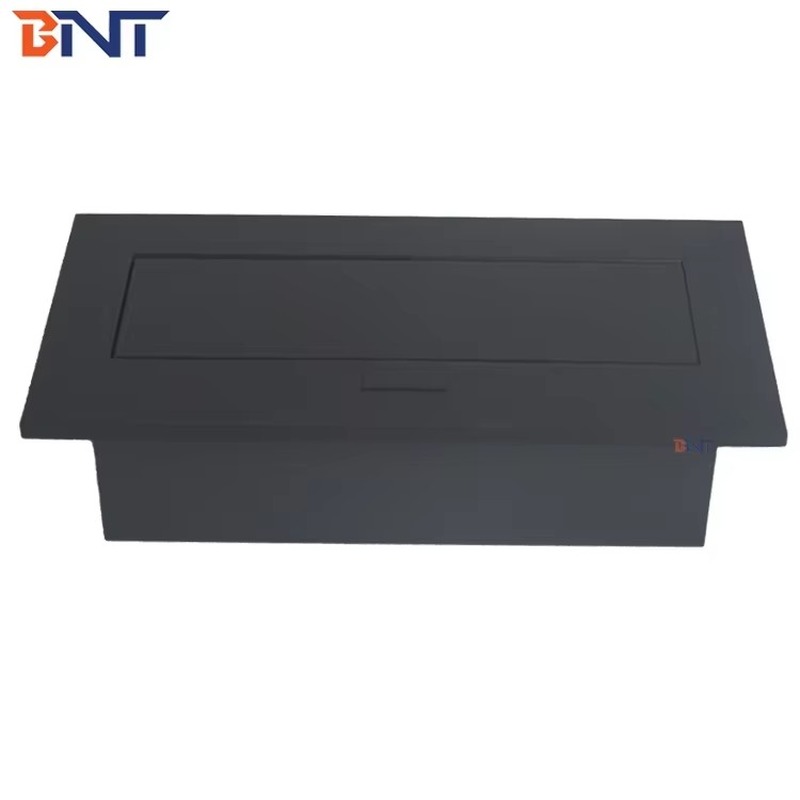

Pop Up Conference Table Outlet, 2 US Outlets with HDMI, VGA and Network

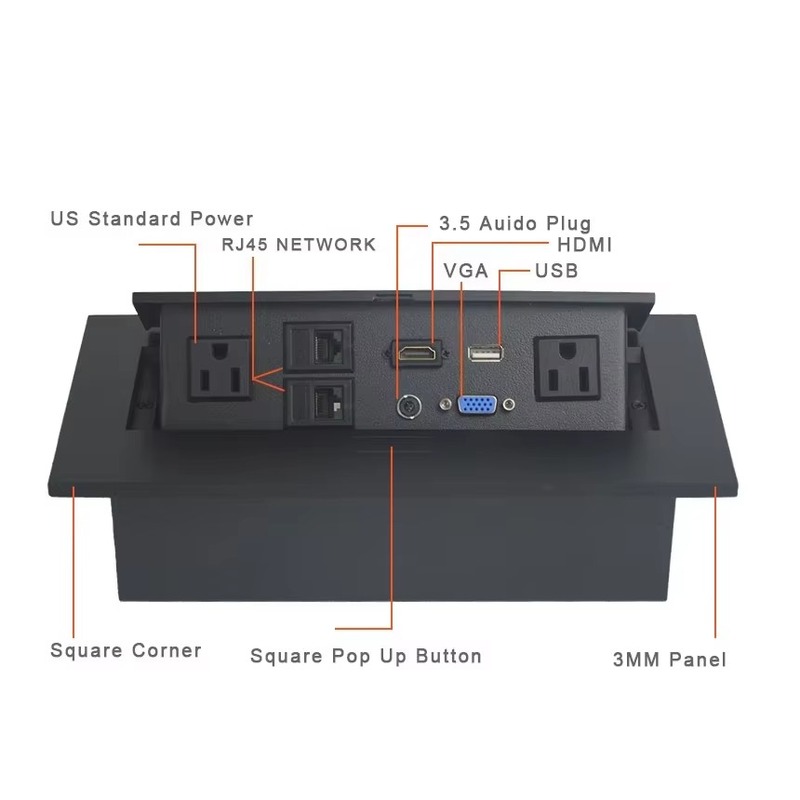

The BD630-2US puts the whole meeting connection into one flip-open plate: two US outlets, HDMI, VGA, two network ports, a USB port and a 3.5 mm audio jack. The plate is zinc alloy, so the leading edge holds its shape in a table that is used every day.

One plate means one cut-out and one cable bundle for the table, instead of a power module plus a separate AV plate. When the lid closes, the tabletop is flat again and can be used for anything else.

What it offers

• 2 x US outlet, 10A/16A at 110V-240V.
• HDMI, VGA and 3.5 mm audio for display and sound connections.
• 2 x network port plus a USB port.
• Zinc alloy plate with a flip-open lid.
• IP44 protection for tables near drink service.

Where it is used

• Conference and boardroom tables
• Training and seminar rooms
• Hotel meeting floors
• Co-working meeting rooms
• Education and lecture tables

Specifications

Frequently asked questions

Do the AV ports need power?

No. HDMI, VGA and audio are pass-through connections; the plate only needs power for the outlets and the USB port.

Does it take standard US plugs?

Yes. The two AC outlets are US configuration and the plate is rated 10A/16A at 110V-240V.

What is the minimum order?

Please contact our sales team for the current minimum order and lead time for this model.

Can the port mix be changed?

Custom configurations are possible. Tell us the port mix you need and we will confirm against the plate layout.

About BNT

BNT designs and manufactures recessed sockets, pop up outlets and furniture power modules for office fit-out, hospitality and contract furniture projects. Send us your panel or floor drawing, the plug standard for the destination market and the quantity, and we will confirm the configuration and the cut-out drawing.
