Mini Recessed Desk Outlet, 1 US Standard Outlet 16A IP44, Flush Panel Mount for Furniture

A single outlet that disappears into the furniture

The TS46US is a mini recessed socket for furniture panels: the side of a desk, the back of a sofa, a bedside cabinet, a wardrobe or a reception counter. It takes one US standard outlet, 16A rated, in a housing small enough to fit where a normal socket will not, and it mounts through the panel so the front face sits flat against the surface.

Most furniture has no provision for power, which is why a lamp, a laptop or a phone charger ends up on an extension lead across the floor. A recessed socket turns the panel itself into the power point, with the cable emerging from the furniture instead of from a wall behind it.

One outlet, panel mounted

• 1 x US standard outlet with standard grounding, 16A rated, 110~220V.
• Threaded screw mount that grips the panel from both sides, so the socket cannot be pushed through.
• IP44 protection against dust and splashing water.

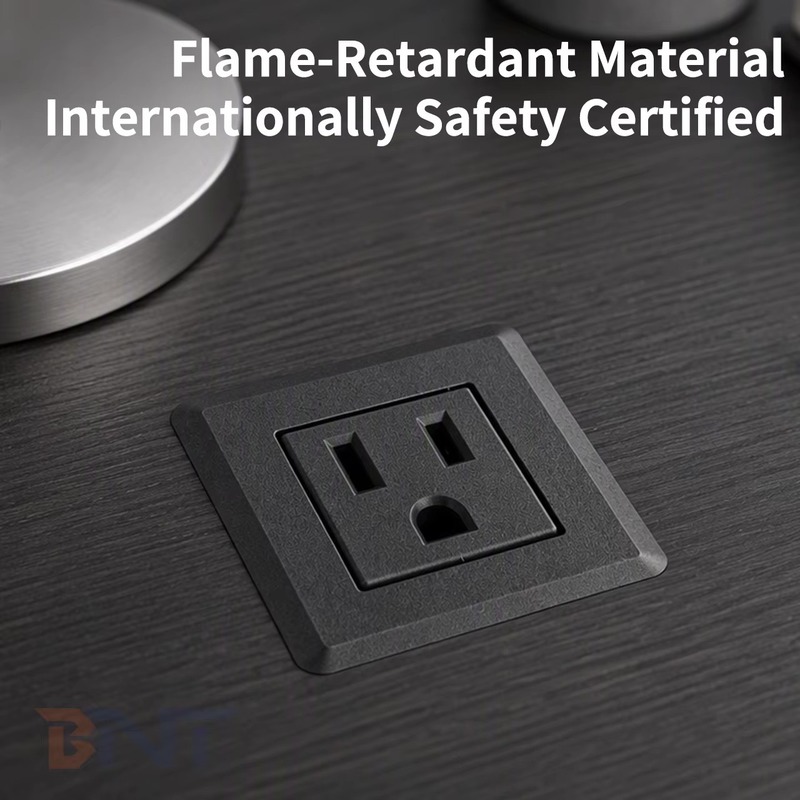

• PC flame-retardant housing for furniture and contract interiors.

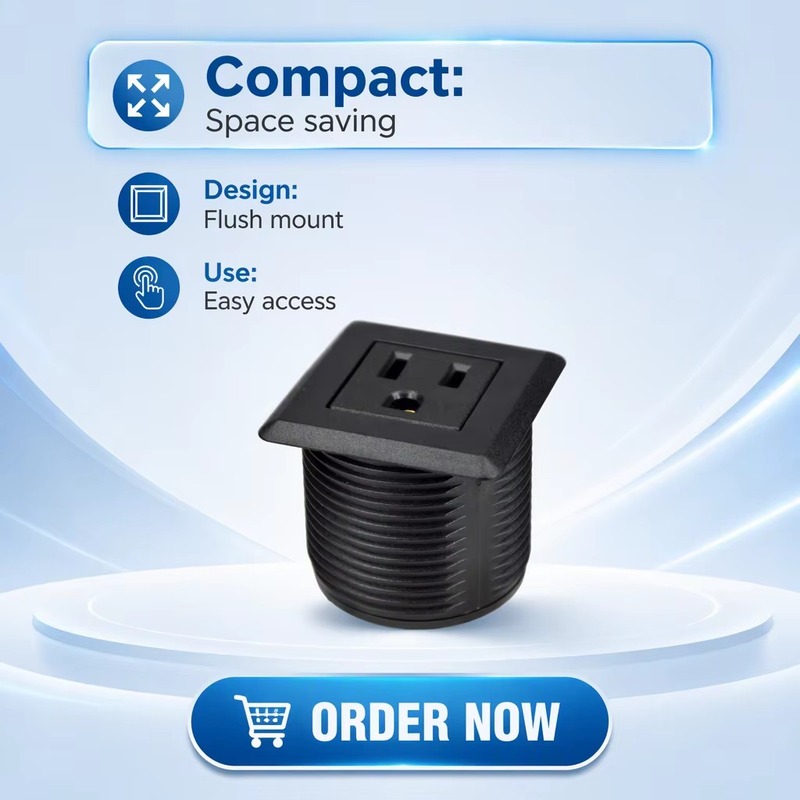

• Mini footprint that fits a narrow stile, a desk gable or a cabinet side.

The single-outlet format is deliberate. It suits the place where one device needs power, not a workstation: a sofa with a charging cable, a bedside cabinet with a lamp and a phone, a display plinth, a hotel desk. One outlet means one hole and a neat install, rather than a strip that has to be hidden.

Built into furniture, not onto it

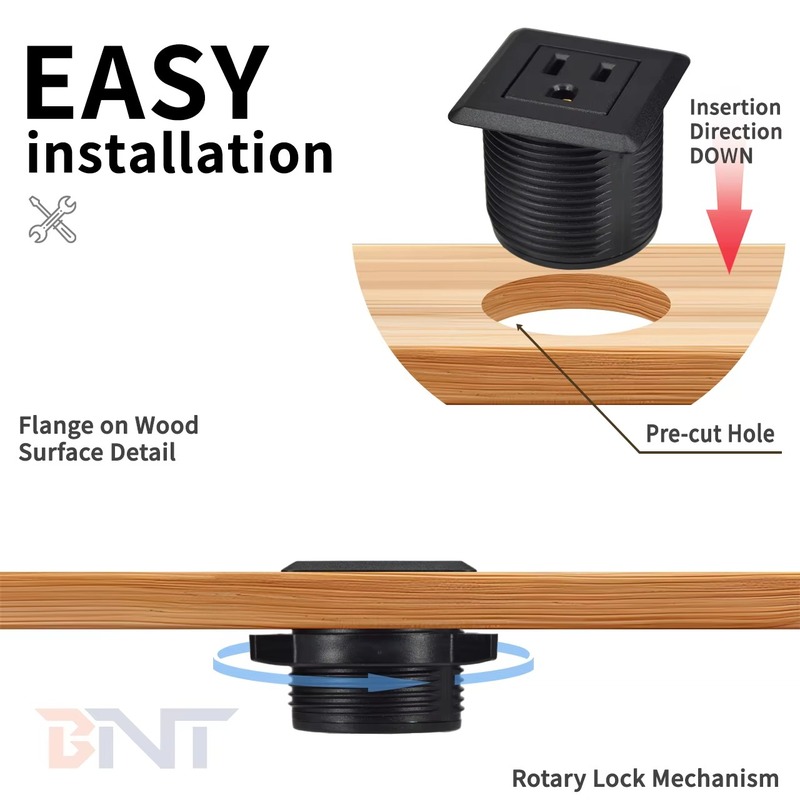

The housing is PC with flame-retardant additives, which is the material furniture makers expect for an electrical component inside a wooden or upholstered carcass. The threaded body clamps the panel between the flange and the lock nut, so the installation stays tight in MDF, plywood and solid timber without a separate bracket.

Wiring is brought to the back of the housing inside the carcass, which keeps the cable invisible from the front. For a sofa or an upholstered panel, the socket can be positioned on the outside face while the cable runs behind the frame.

Where it is specified

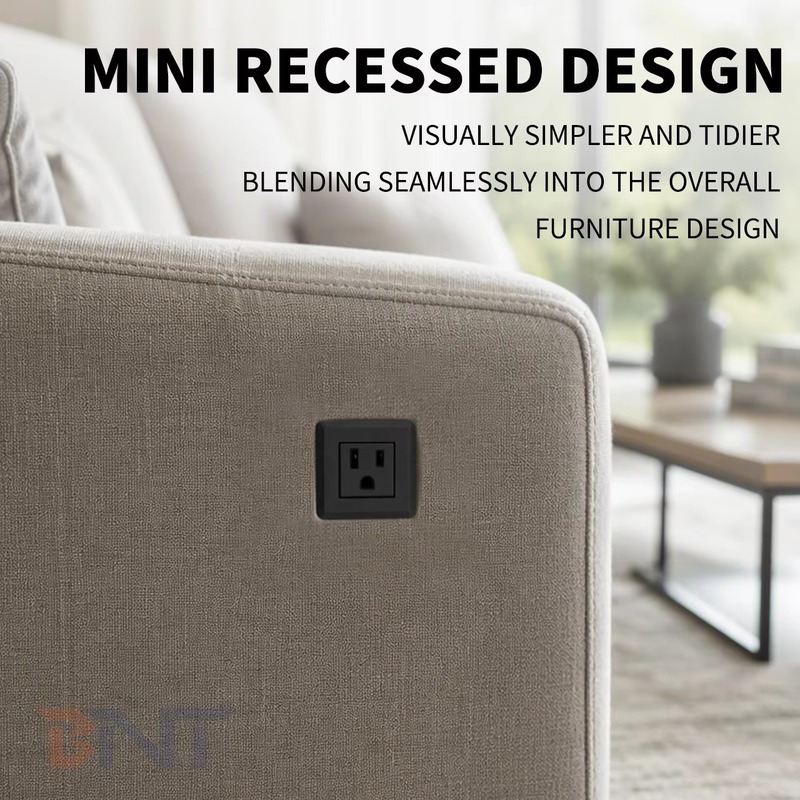

• Sofas and armchairs: a charging point at the seat without a floor cable.

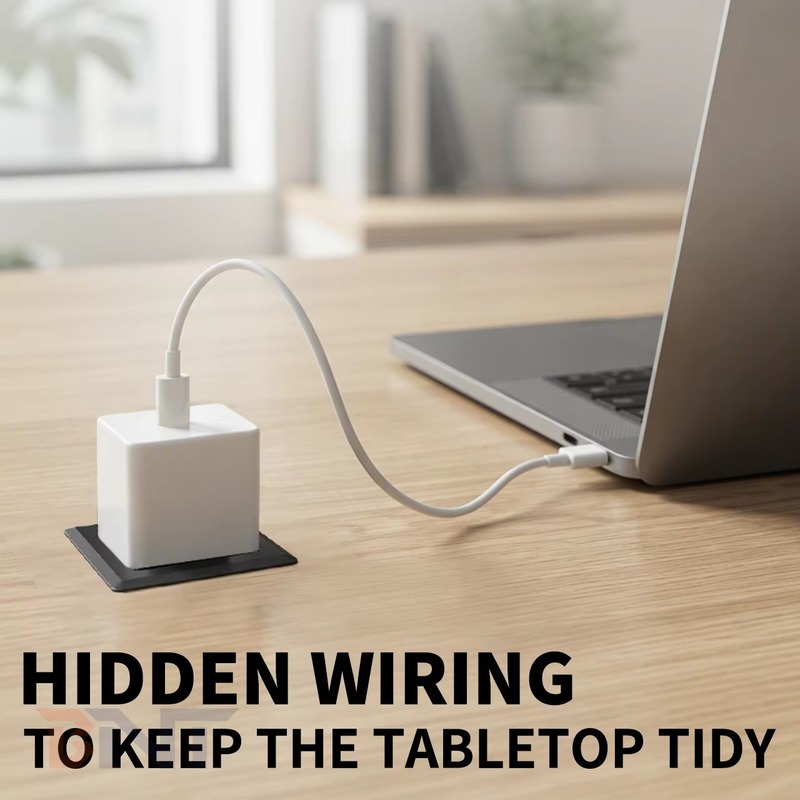

• Desks and gables: power at the panel for a laptop or a lamp.

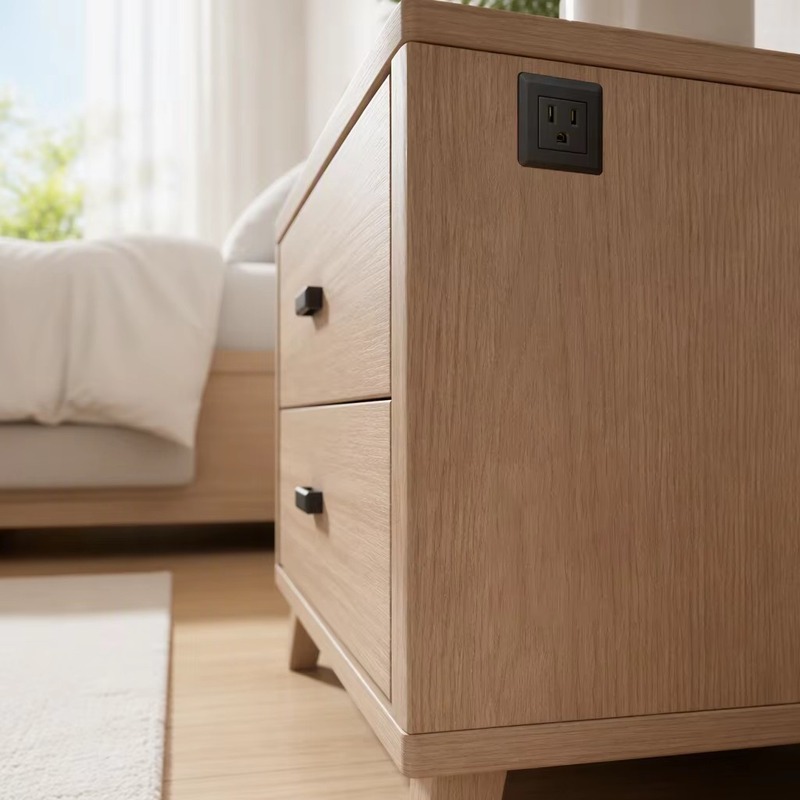

• Bedside cabinets and wardrobes: an outlet inside the furniture line.
• Hotel rooms and serviced apartments: discreet guest charging.
• Reception counters and display plinths: power where the public sees no socket.
• RV and marine interiors: a compact outlet in a thin panel.

Specifications

Frequently asked questions

How thick can the panel be?

The threaded body accepts a range of panel thicknesses. Tell us the carcass thickness and we will confirm the exact variant before production.

Does it take standard US plugs?

Yes. It is a US standard outlet with standard grounding, rated 16A at 110~220V.

Can it be fitted to an existing sofa?

Yes, if the frame has a flat area large enough for the flange and clear space behind it for the housing and cable.

Is it safe inside wooden furniture?

The housing is flame-retardant PC and the unit is IP44 rated. The installation must still be wired by a qualified electrician to local code.

What is the minimum order?

Please contact our sales team for the current minimum order and lead time for this model.

About BNT

BNT manufactures recessed sockets, panel outlets and furniture power modules for furniture makers, hotel projects and contract interiors. Send us the panel drawing and thickness, and we will confirm the mounting variant and cut-out drawing.
